Asrock X570 PG Velocita Motherboard
Price:
₹26,675.00
Out of stock
Easy EMI option available at the Checkout Page. Keep buying with us.

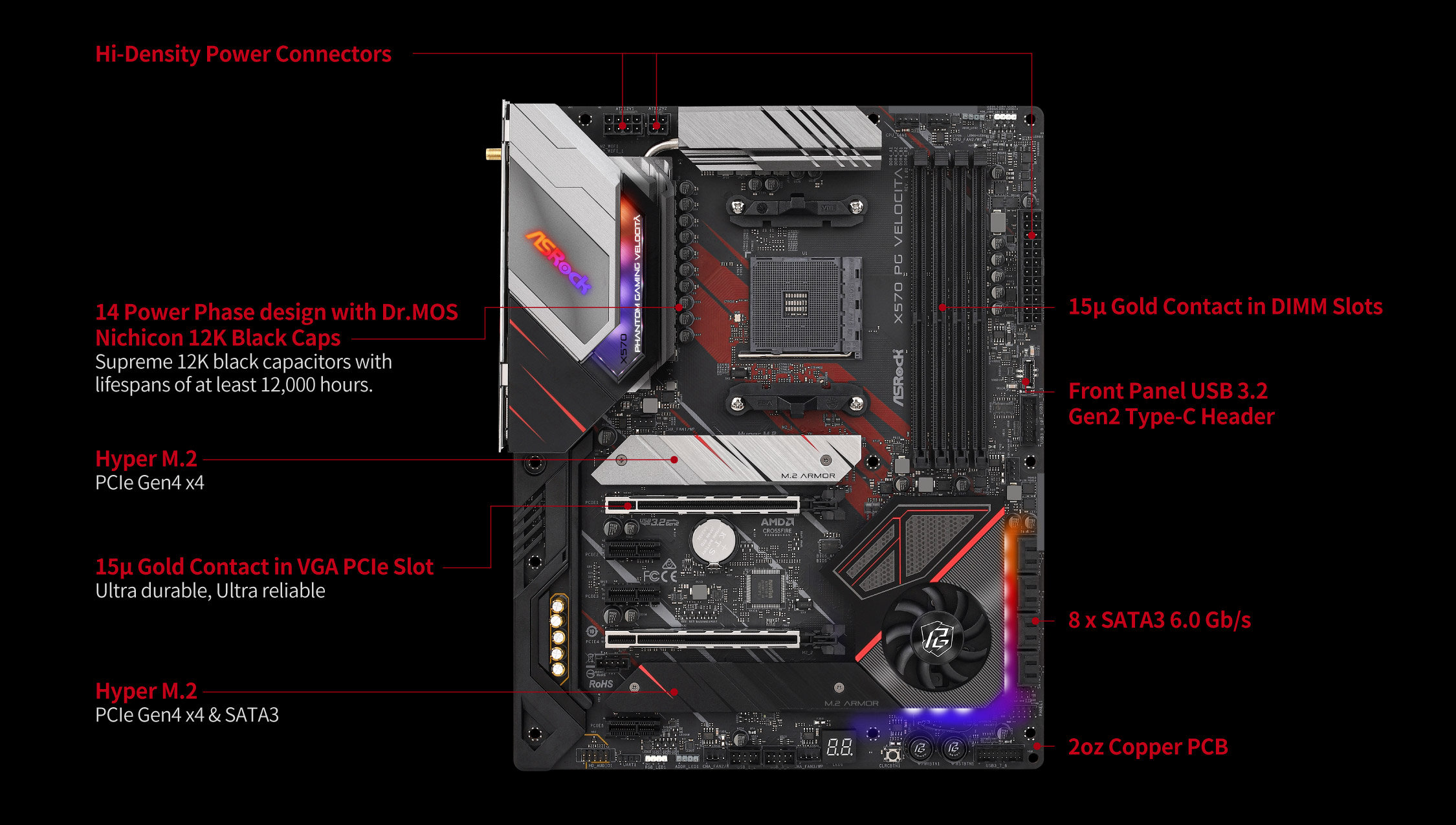

X570 PG Velocita
- Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series and 5000 Series Desktop Processors
- 14 Power Phase Design, Digi Power, Dr. MOS
- Supports DDR4 5000+ (OC)
- 2 PCIe 4.0 x16, 3 PCIe 4.0 x1*
- Graphics Output Options: HDMI, DisplayPort
- 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio
- 8 SATA3, 1 Hyper M.2 (PCIe Gen4 x4), 1 Hyper M.2 (PCIe Gen4 x4 & SATA3)*
- 3 USB 3.2 Gen2 (Rear Type A+C, Front Type-C), 10 USB 3.2 Gen1 (4 Front, 6 Rear)
- Killer E3100 2.5G LAN
- Killer AX1650 802.11ax WiFi 6
*Actual support may vary by CPU
PG Velocita is a brand new high end product line under the Phantom Gaming family, the PG Velocita motherboard series packed full with uncompromised performance as well as relentless appearance. “Velocità” is Italian for “Velocity”, destined to give a fast and unbeatable gaming experience to the gamers!
REVOLUTIONARY X570 MOTHERBOARDS:

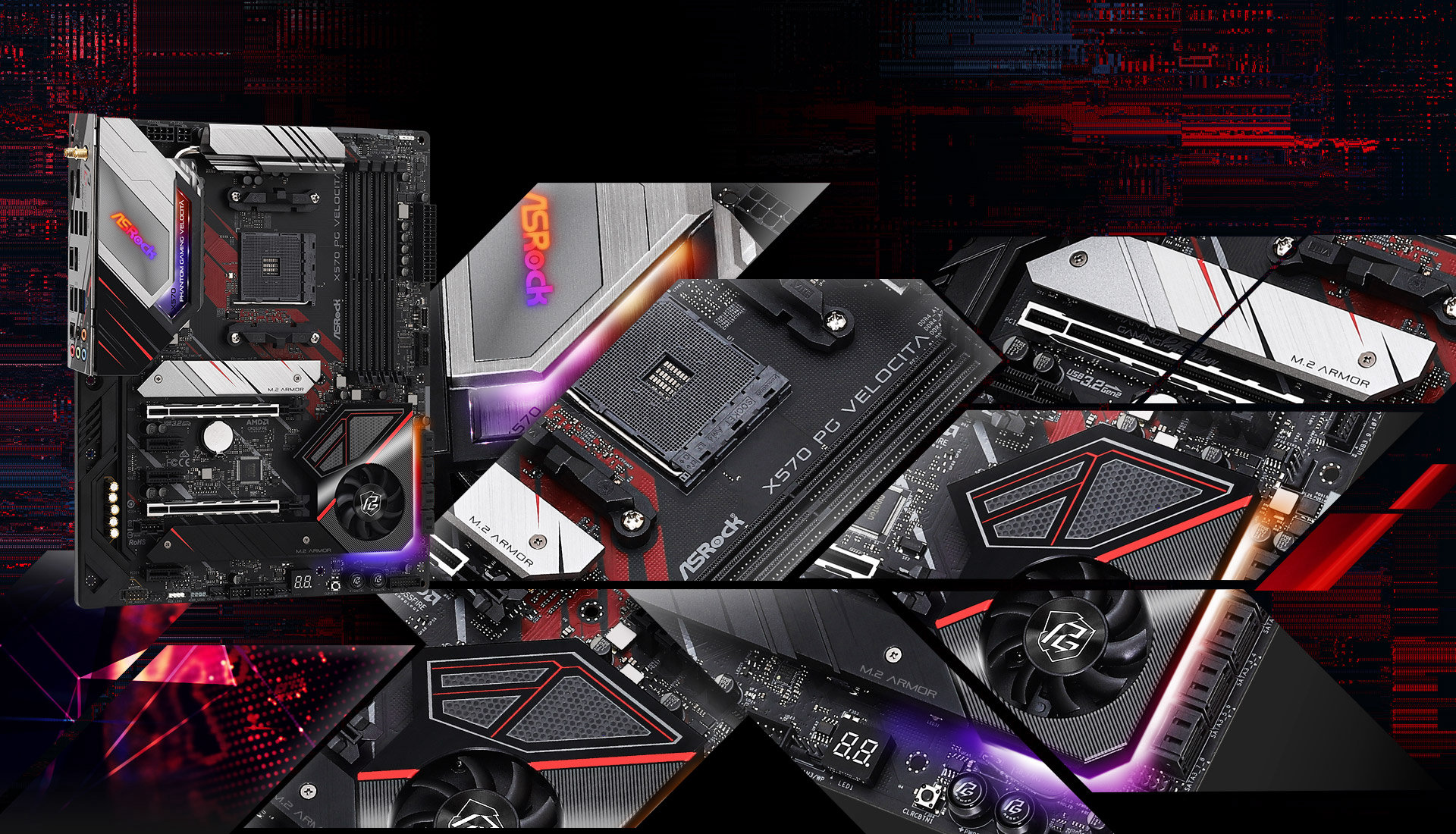

Your PC Transformed
Style . More reliable. Design that delivers.

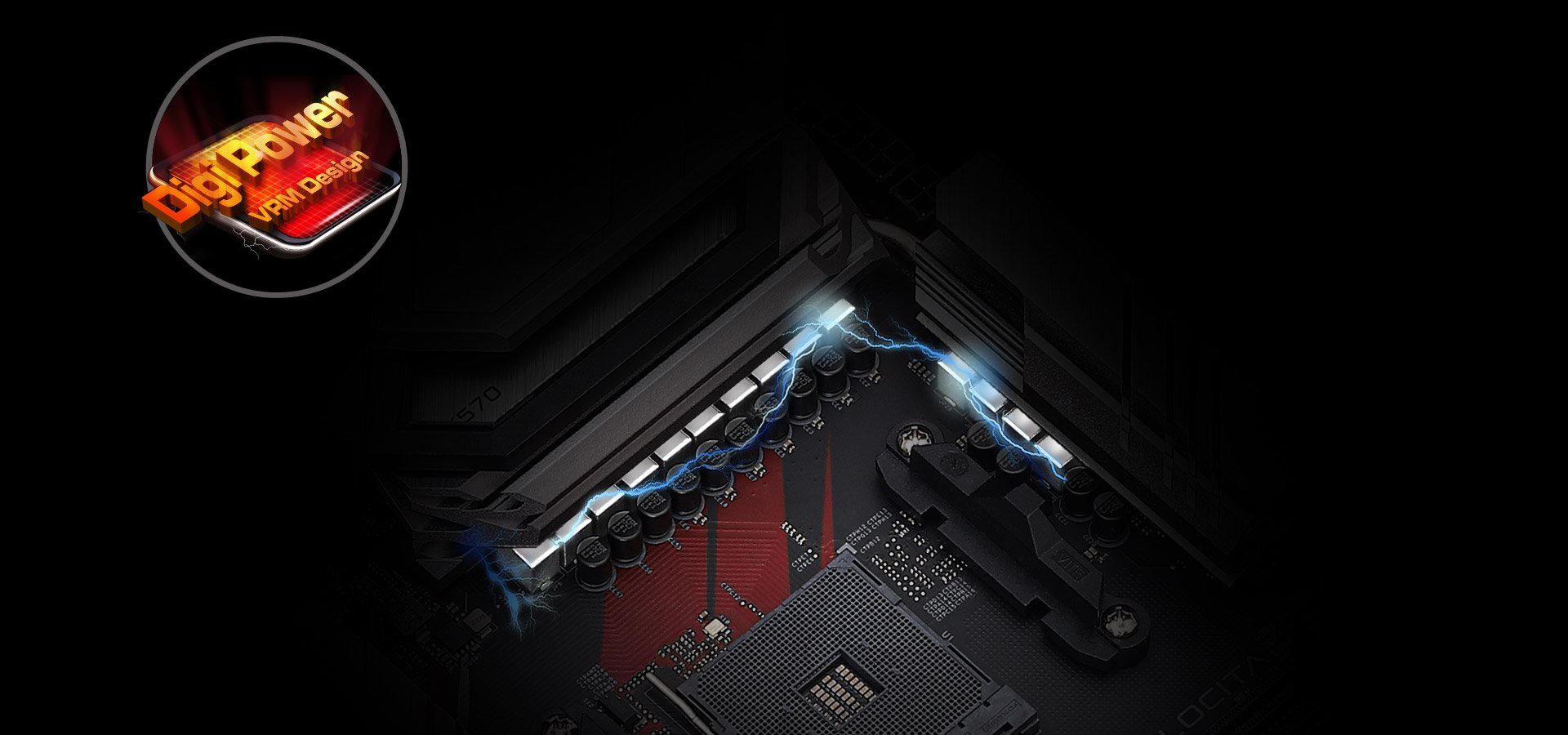

Dr. MOS14 Power Phase DesignDr. MOS
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.Premium 60A Power Choke
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.

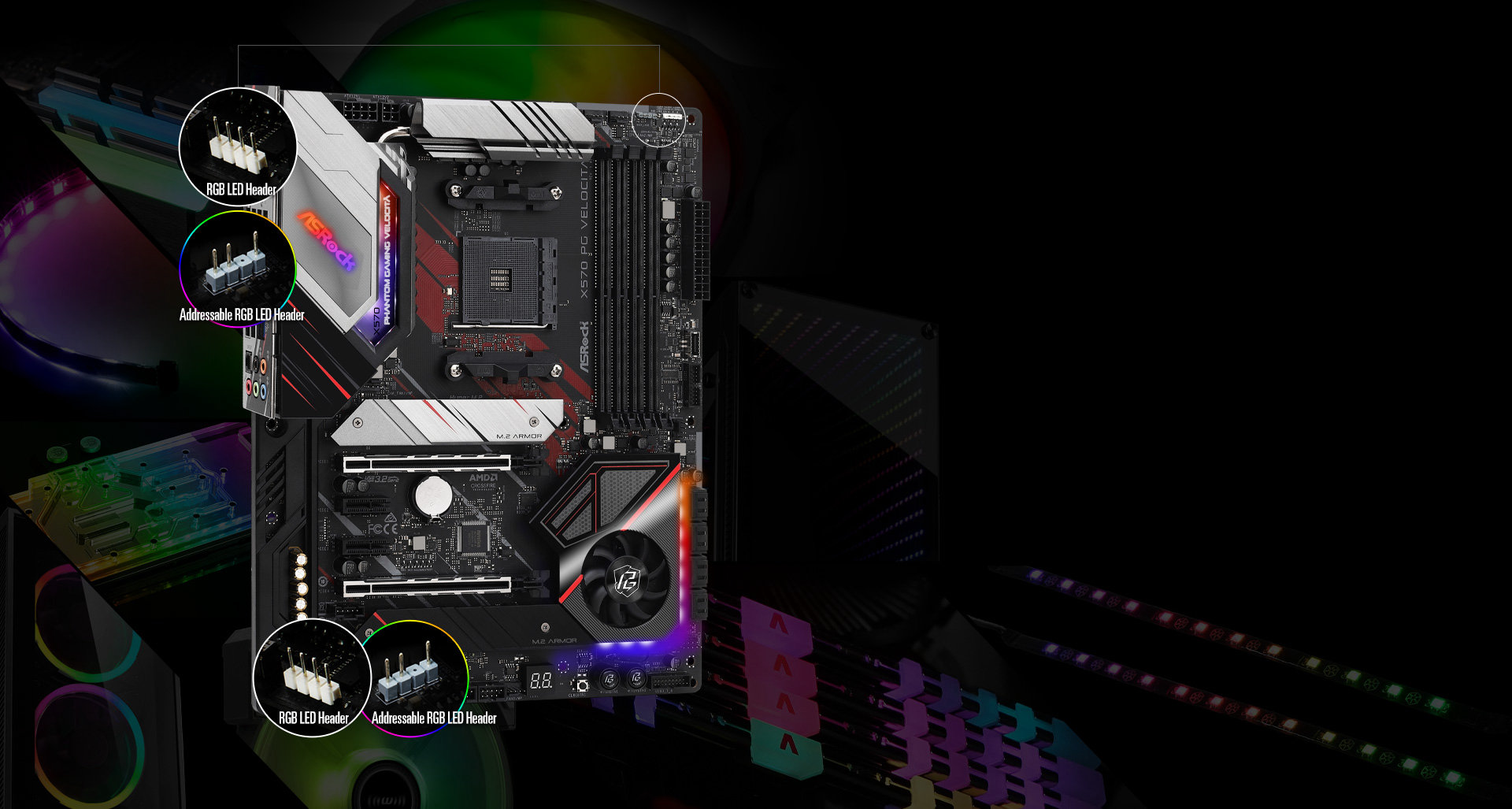

RULE YOUR OWN LIGHTING WAY – POLYCHROME RGB
ASRock motherboards deliver stunning performance and superior aesthetics to rule your own colorful lighting way! ASRock offers a very comprehensive control to perform the built-in RGB LEDs or the connected LED strips, CPU fans, coolers, chassis and any RGB devices smoothly. Devices can be synchronized across the Polychrome RGB Sync-certified accessories as well.
*The addressable RGB LED header supports WS2812B addressable RGB LED strip (5V/Data/GND), with a maximum power rating of 3A (5V), a max of 80 LEDs and length within 2 meters.
*The RGB LED header supports standard 5050 RGB LED strip (12V/G/R/B), with a maximum power rating of 3A (12V) and length within 2 meters.

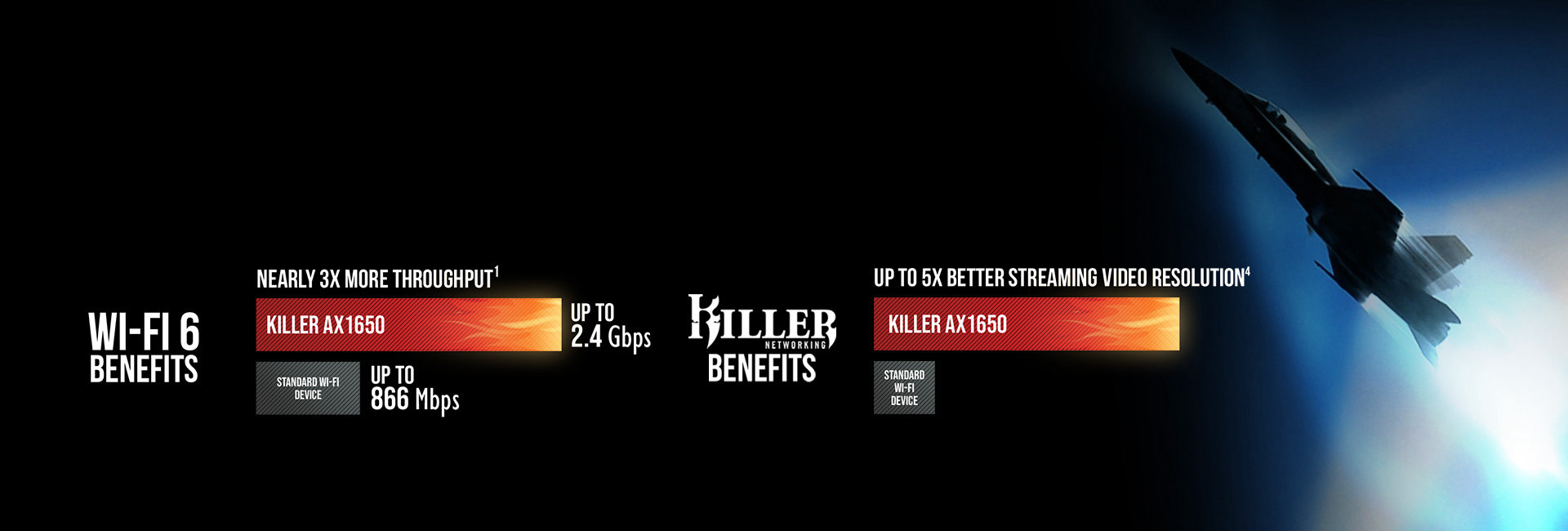

Killer™ Wi-Fi 6 AX1650
Killer Wi-Fi 6 AX1650 is the world’s first Wi-Fi 6 module specically designed to deliver the fastest gameplay, the best streaming, and the most immersive communication experiences.
Killer™ Ethernet E3100
The Killer E3100 2.5 Gbps Ethernet controller is designed specically for competitive gamers and performance-hungry users. The enhanced detection and prioritization engine provides the ultimate networking experience for gaming and multimedia applications.

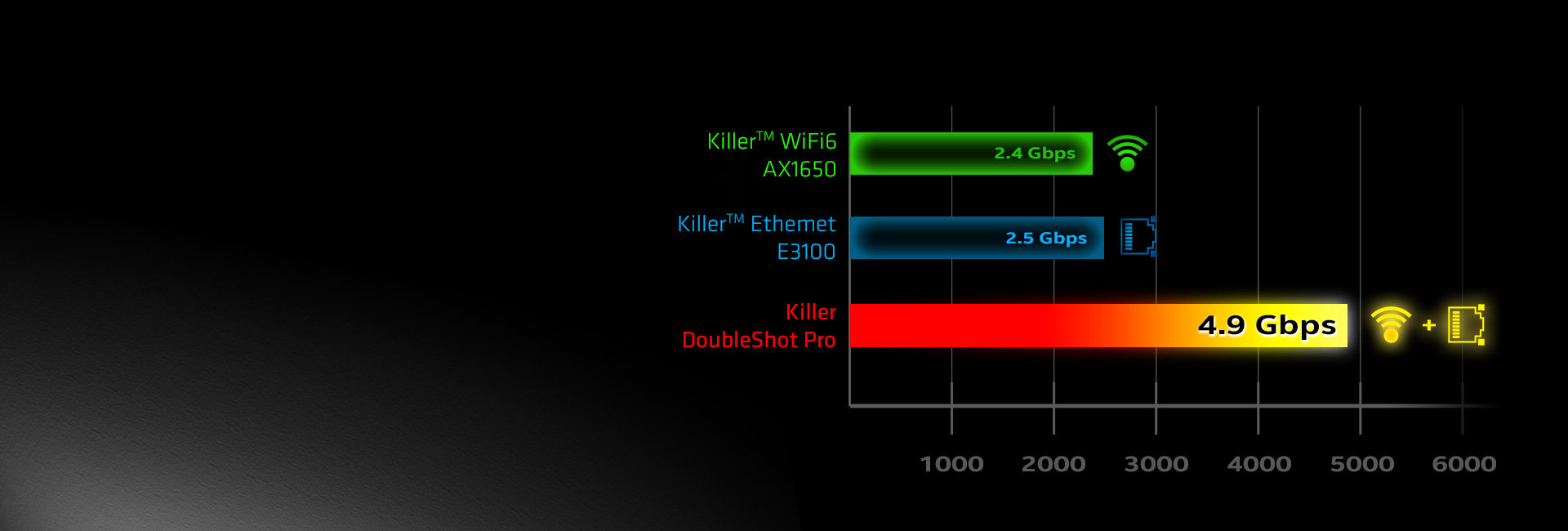

Killer DoubleShot™ Pro
Killer DoubleShot Pro allows the use of both the Killer Wireless and Killer Ethernet interfaces work at the same time which will give the end user max throughput as high as 4.9 Gbps, it automatically utilizes the fastest network connection for high priority traffic, this ensures the highest priority traffic will always be put on the fastest and most reliable link.
Killer DoubleShot™ Pro Benefits:
● Speed: DoubleShot Pro Technology delivers the maximum speed and throughput possible for your computer by allowing your computer to use all of your network adapters at the same time.
● Intelligence: The Killer Prioritization Engine to automatically classify and prioritize high priority traffic like online games, streaming video, and high quality audio to be handled by the systems fastest network interface. This will provide users with a higher quality experience with fewer interruptions.
● Maximum Control: Utilize the Killer Control Center 2.0 to see and manage which network connection your applications are using. Set limits using Visual Bandwidth Control or shut them down completely with application blocking, so they don’t interfere with higher priority apps.
AMD SMART ACCESS MEMORY
Conventional PC systems processor can only access a fraction of graphics memory and limits system performance. With AMD Smart Access Memory, the data channel gets expanded to harness the full potential of GPU memory, removes the bottleneck and increase performance.

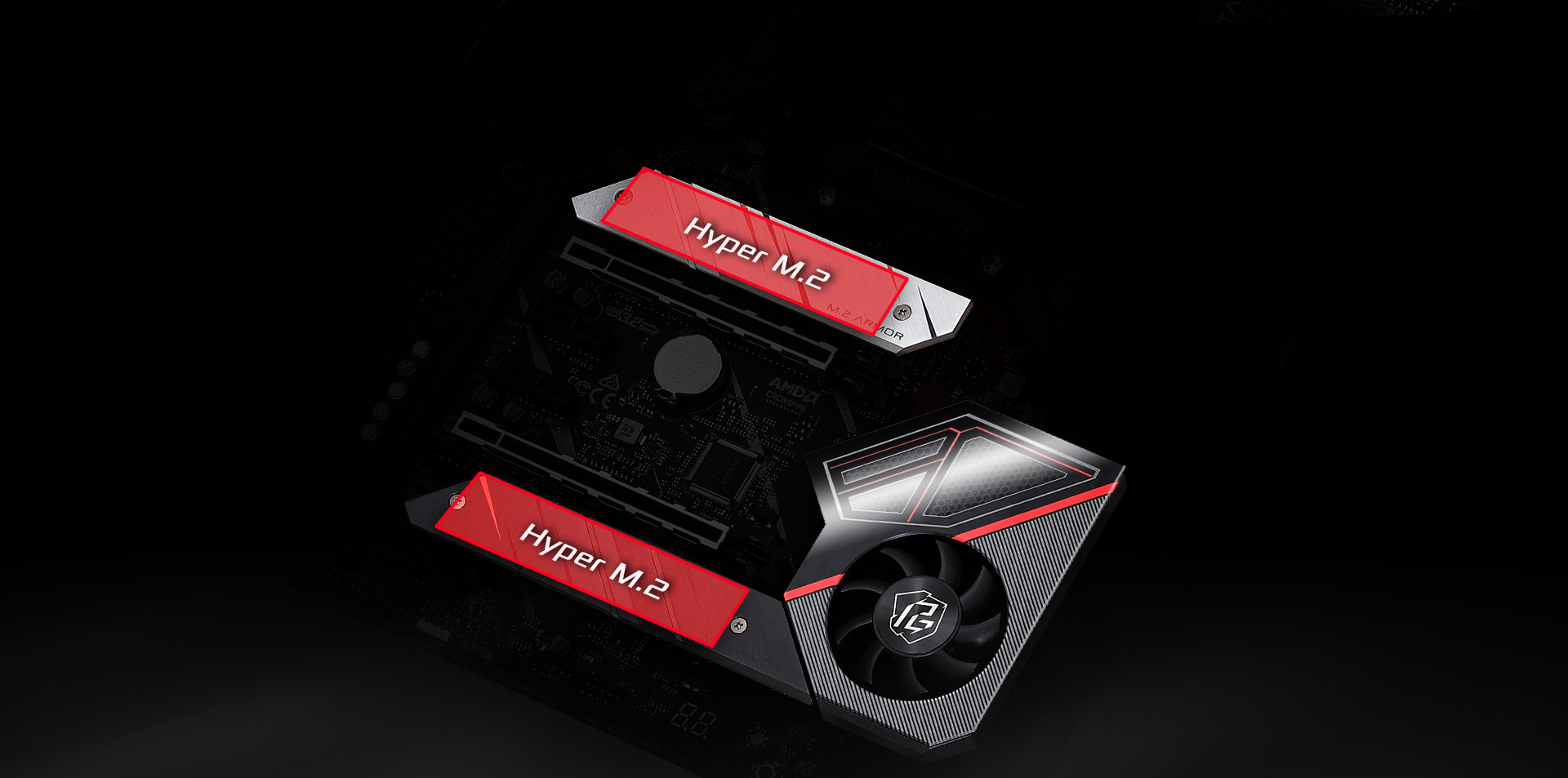

Dual Hyper M.2 For SSD
Supports the next generation PCI Express 4.0 M.2 SSDs, it is capable of perform twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.
Reinforced Steel Slot [PCIe 4.0 Version]
The reinforced steel slot comes with the next generation PCI Express 4.0 standard. The various benefits include:
✔ Extra anchor points
✔ Stronger latch
✔ Ensure signal stability
✔ Make sure heavy graphics cards to be well-installed.
Nahimic Audio
Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details.
The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.Flexible Integrated I/O Shield

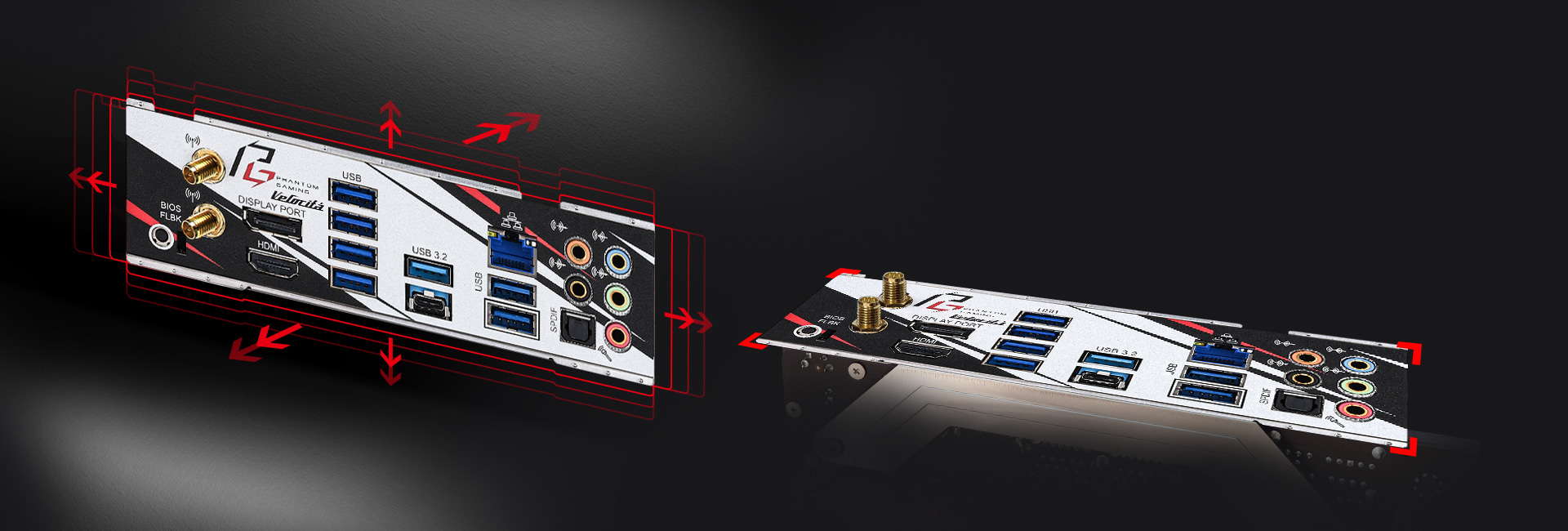

Unlike most so called pre-mounted I/O shield that is only decorated with fancy color schemes. We reserve more tolerance space and allow IO shield is adjustable when installing, thus fitting chassis perfectly without any mechanical issue.

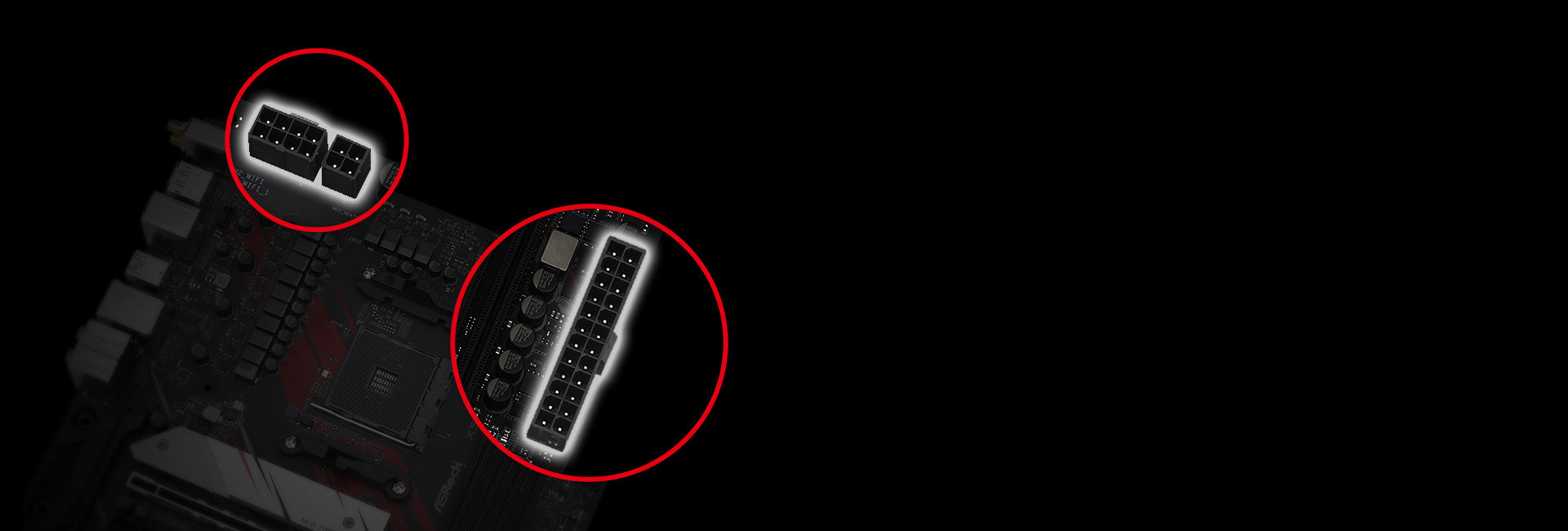

Hi-Density Power Connector
Reduces 23% power loss and decreases the connector’s temperature by 22 degrees Celsius.
8+4 12V Power Connectors
24-pin ATX Power Connector
Dual USB 3.2 Gen2 (Type-A + Type-C)
This motherboard has a pair of onboard Type-A and Type-C USB 3.2 Gen2 ports built on the rear i/o for supporting next generation USB 3.2 Gen2 devices and to deliver up to 10 Gbps data transfer rates.USB 3.2 Gen2 doubles the data transfer rate
USB 3.2 Gen2 Type-C doubles the charge speed!
Front USB 3.2 Gen2 Type-C
Front USB 3.2 Gen2 Type-C header delivers up to 10 Gbps data transfer rate and next generation reversible USB design to the front panel of computer case.
Dual Graphics Outputs
Complete with two types of most used connectors! Packed with a HDMI + DisplayPort combo, you have more graphics output options now.
HDMI 4k @60Hz
Supports the most recent HDMI 4K 60Hz graphics output specification. With the larger bandwidth and increased frame rate, the motion on your screen becomes more fluid and less blurry.
![SA [0 Header-Gaming]](https://www.asrock.com/mb/features/SA.png)

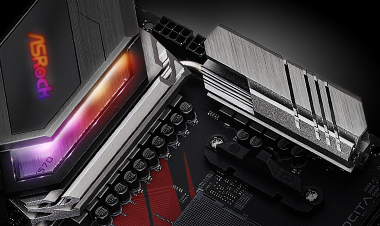

XXL Aluminum Alloy Heatsink
![SA [XXL Aluminum Alloy Heatsink]](https://www.asrock.com/mb/features/SA-Heatsink-X570%20PG%20Velocita.jpg)
Extra large aluminum alloy heat sinks that effectively take away heat from the MOSFET and chipset so that your whole system may perform more stable.Dr. MOS
![SA [Dr.MOS] 50A](https://www.asrock.com/mb/features/SA-DrMOS.jpg)
Dr.MOS is the integrated power stage solution which is optimized for synchronous buck-set down voltage applications! Intelligently delivering higher current and driving up to 50A continuous current for each phase, thus providing improved thermal result and superior performance.Premium 60A Power Choke

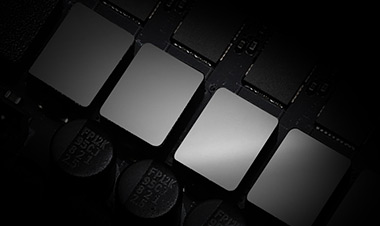

![SA [Premium 60A Power Choke] AMD](https://www.asrock.com/mb/features/SA-60APowerChoke-X570%20PG%20Velocita.jpg)
Compared to traditional chokes, ASRock’s premium 60A power chokes effectively make the saturation current up to three times better, thus providing enhanced and improved Vcore voltage to the motherboard.Nichicon 12K Black Caps
![SA [Nichicon 12K Black Caps]](https://www.asrock.com/mb/features/SA-Nichicon12KBlack.jpg)
Supreme 12K black capacitors with lifespans of at least 12,000 hours. Compared to other counterparts on high-end motherboards that merely have lifespans of around 10,000 hours, ASRock applied Nichicon 12K Black Caps that offer 20% longer lifespans and provide more stability and reliability.I/O Armor

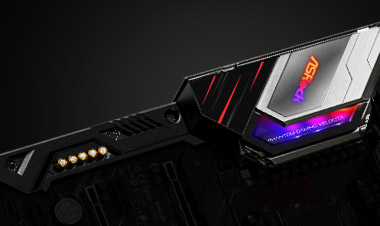

![SA [I/O Armor]](https://www.asrock.com/mb/features/SA-Armor-X570%20PG%20Velocita.jpg)
A new designed protective cover for all of the crucial parts near the motherboard’s rear I/O, so that they won’t easily be damaged by static electricity.2oz Copper PCB
![SA [2oz Copper PCB]](https://www.asrock.com/mb/features/SA-2oz.jpg)
Using only carefully selected copper materials for PCB layers, 2oz Copper PCB delivers lower temperature and higher energy efficiency for overclocking.High Density Glass Fabric PCB
![SA [High Density Glass Fabric PCB]](https://www.asrock.com/mb/features/SA-HDPCB.jpg)
High Density Glass Fabric PCB design that reduces the gaps between the PCB layers to protect the motherboard against electrical shorts caused by humidity.Matte Black PCB
![SA [Matte Black PCB]](https://www.asrock.com/mb/features/SA-MattePCB.jpg)
A new mysterious matte black and copper color scheme to match the prestigious components on ASRock’s high-end motherboards.
Water Pump Header
This is not only a standard CPU fan header, but also supports water pumps! This header provides a maximum of 2A power for supporting the most popular water pumps. User also can adjust the voltage of water pump to get higher cooling performance with lower noise.
Full Spike Protection
Some sensitive digital components on the motherboard are vulnerable to power surges, the excessive current may cause your system to malfunction immediately. ASRock Full Spike Protection includes various technologies to prevent your motherboard’s components from being damaged by these unexpected voltage spikes.
Live Update & APP Shop
ASRock Live Update & APP Shop is designed for your convenience. We provide various apps and support software for users to download. You can also easily optimize your system and keep your motherboard up to date with ASRock Live Update & APP Shop.Specifications
Gaming Armor Power
– Hi-Density Power Connectors (24 pin, 8 pin and 4 pin)
Memory
– 15μ Gold Contact in DIMM Slots
VGA Card
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)
Internet
– Killer 2.5G LAN
Cooling
– XXL Aluminum Alloy Heatsink
– Heat Pipe Design
Audio
– Nahimic AudioUnique Feature ASRock USB 3.2 Gen2
– ASRock Front Panel USB 3.2 Gen2 Type-C Header (10 Gb/s)
– ASRock USB 3.2 Gen2 Type-A Port (10 Gb/s)
– ASRock USB 3.2 Gen2 Type-C Port (10 Gb/s)
ASRock Super Alloy
– XXL Aluminum Alloy Heatsink
– Premium 60A Power Choke
– 50A Dr.MOS
– Premium Memory Alloy Choke (Reduces 70% core loss compared to iron powder choke)
– Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
– I/O Armor
– Matte Black PCB
– High Density Glass Fabric PCB
– 2oz Copper PCB
Killer 2.5G LAN
Killer 802.11ax WiFi
ASRock Steel Slot Gen4
ASRock Full Coverage M.2 Heatsink
ASRock Hyper M.2 (PCIe Gen4x4 & SATA3)
ASRock Ultra USB Power
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP ShopCPU – Supports AMD AM4 Socket Ryzen™ 2000, 3000, 4000 G-Series and 5000 Series Desktop Processors
– Digi Power design
– 14 Power Phase designChipset – AMD X570 Memory – Dual Channel DDR4 Memory Technology
– 4 x DDR4 DIMM Slots
– AMD Ryzen series CPUs (Vermeer) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Matisse) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series APUs (Renoir) support DDR4 5000+(OC) / 4933(OC) / 4866(OC) / 4800(OC) / 4733(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series CPUs (Pinnacle Ridge) support DDR4 3600+(OC) / 3466(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory*
– AMD Ryzen series APUs (Picasso) support DDR4 3466+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory*– Max. capacity of system memory: 128GB**
– Supports Extreme Memory Profile (XMP) memory modules
– 15μ Gold Contact in DIMM Slots*For Ryzen Series APUs (Picasso), ECC is only supported with PRO CPUs.
Please refer to below table for AMD non-XMP memory frequency support. For more details, please refer to the QVL on ASRock’s website.SR: Single rank DIMM, 1Rx4 or 1Rx8 on DIMM module label x=1 or 2
DR: Dual rank DIMM, 2Rx4 or 2Rx8 on DIMM module label**Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.BIOS – 256Mb AMI UEFI Legal BIOS with GUI support
– Supports “Plug and Play”
– ACPI 5.1 compliance wake up events
– Supports jumperfree
– SMBIOS 2.3 support
– CPU, CPU VDDCR_SOC, DRAM, VPPM, PREM VDD_CLDO, PERM VDDCR_SOC, +1.8V, VDDP Voltage Multi-adjustmentGraphics – Integrated AMD Radeon™ Vega Series Graphics in Ryzen Series APU*
– DirectX 12, Pixel Shader 5.0
– Shared memory default 2GB. Max Shared memory supports up to 16GB.**
– Dual graphics output: support HDMI and DisplayPort 1.4 ports by independent display controllers
– Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096×2160) @ 60Hz
– Supports DisplayPort 1.4 with max. resolution up to 5K (5120×2880)@120Hz***
– Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
– Supports HDR (High Dynamic Range) with HDMI 2.1
– Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports****
– Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports
– Supports Microsoft® PlayReady*Actual support may vary by CPU
**The Max shared memory 16GB requires 32GB system memory installed.
***Picasso supports DisplayPort 1.2 up to 4K x 2K (4096×2160) @ 60Hz.
****Picasso supports HDCP 2.2 with HDMI 2.0 and DisplayPort 1.2 Ports
Audio – 7.1 CH HD Audio with Content Protection (Realtek ALC1220 Audio Codec)
– Premium Blu-ray Audio support
– Supports Surge Protection
– 120dB SNR DAC with Differential Amplifier
– NE5532 Premium Headset Amplifier for Front Panel Audio Connector (Supports up to 600 Ohm headsets)
– Pure Power-In
– Direct Drive Technology
– PCB Isolate Shielding
– Impedance Sensing on Rear Out port
– Individual PCB Layers for R/L Audio Channel
– Gold Audio Jacks
– 15μ Gold Audio Connector
– Nahimic AudioLAN – 2.5 Gigabit LAN 10/100/1000/2500 Mb/s
– 1 x Killer E3100G (PCIE x1 Gigabit LAN 10/100/1000/2500 Mb/s)
– Supports Killer LAN Software
– Supports Killer DoubleShotTM Pro
– Supports Wake-On-LAN
– Supports Lightning/ESD Protection
– Supports Energy Efficient Ethernet 802.3az
– Supports PXEWireless LAN – Killer AX1650x 802.11ax WiFi Module
– Supports IEEE 802.11a/b/g/n/ax
– Supports Dual-Band (2.4/5 GHz)
– Supports Killer WiFi6 802.11ax (2.4Gbps)
– 2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology
– Supports Bluetooth 5.1 + High speed class II
– Supports MU-MIMO
– Supports Killer LAN Software
– Supports Killer DoubleShotTM ProSlots AMD Ryzen series CPUs (Vermeer, Matisse)
– 2 x PCI Express 4.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))*
AMD Ryzen series CPUs (Renoir, Pinnacle Ridge)
– 2 x PCI Express 3.0 x16 Slots (single at x16 (PCIE1); dual at x16 (PCIE1) / x4 (PCIE4))*
AMD Ryzen series APUs (Picasso)
– 2 x PCI Express 3.0 x16 Slots (single at x8 (PCIE1); dual at x8 (PCIE1) / x4 (PCIE4))*– 3 x PCI Express 4.0 x1 Slots
– Supports AMD Quad CrossFireX™ and CrossFireX™
– 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ax PCIe WiFi module (on the rear I/O)
– 15μ Gold Contact in VGA PCIe Slot (PCIE1)*Supports NVMe SSD as boot disksStorage – 8 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1 and RAID 10), NCQ, AHCI and Hot Plug
– 1 x Hyper M.2 Socket (M2_1), supports M Key type 2230/2242/2260/2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Renoir, Pinnacle Ridge and Picasso)*
– 1 x Hyper M.2 Socket (M2_2), supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen4x4 (64 Gb/s)**If Thunderbolt™ support is enabled, SATA type M.2 will be disabled.
Supports NVMe SSD as boot disks
Supports ASRock U.2 KitConnector – 1 x Power LED and Speaker Header
– 2 x RGB LED Headers*
– 2 x Addressable LED Headers**
– 1 x CPU Fan Connector (4-pin)***
– 1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****
– 4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****
– 1 x 24 pin ATX Power Connector (Hi-Density Power Connector)
– 1 x 8 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x 4 pin 12V Power Connector (Hi-Density Power Connector)
– 1 x Front Panel Audio Connector (15μ Gold Audio Connector)
– 1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 3 AIC R2.0 Card only)
– 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
– 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection)
– 1 x Front Panel Type C USB 3.2 Gen2 Header (Supports ESD Protection)
– 1 x Dr. Debug with LED
– 1 x Power Button with LED
– 1 x Reset Button with LED
– 1 x Clear CMOS Button*Support in total up to 12V/3A, 36W LED Strip
**Support in total up to 5V/3A, 15W LED Strip
***The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
****The CPU/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
*****The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
CPU_FAN2/WP, CHA_FAN1/WP, CHA_FAN2/WP, CHA_FAN3/WP and CHA_FAN4/WP can auto detect if 3-pin or 4-pin fan is in useRear Panel I/O – 2 x Antenna Ports
– 1 x HDMI Port
– 1 x DisplayPort 1.4
– 1 x Optical SPDIF Out Port
– 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (Supports ESD Protection)*
– 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)*
– 6 x USB 3.2 Gen1 Ports (Supports ESD Protection)*
– 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
– 1 x BIOS Flashback Button with LED
– HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone (Gold Audio Jacks)*Ultra USB Power is supported on USB3_5 port.
ACPI wake-up function is not supported on USB3_5 port.Software and UEFI Software
– ASRock Motherboard Utility (Phantom Gaming Tuning)
– ASRock Killer LAN Software
– ASRock Polychrome SYNC
– ASRock Key Master UEFI
– ASRock Full HD UEFI
– ASRock Instant FlashSupport CD – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar Accessories – Quick Installation Guide, Support CD
– 4 x SATA Data Cables
– 1 x ASRock WiFi 2.4/5 GHz Antenna
– 2 x Screws for M.2 Sockets
– 2 x Standoffs for M.2 SocketsHardware Monitor – Temperature Sensing: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
– Fan Tachometer: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
– Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
– Fan Multi-Speed Control: CPU, CPU/Water Pump, Chassis, Chassis/Water Pump Fans
– Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, PREM VDDCR_SOC, +1.8V, VDDPForm Factor – ATX Form Factor: 12.0-in x 9.6-in, 30.5 cm x 24.4 cm
– 2oz Copper PCBOS – Microsoft® Windows® 10 64-bit Certifications – FCC, CE
– ErP/EuP ready (ErP/EuP ready power supply is required)Warranty 3 Years Note *** Features, Price, Specifications are subject to change without notice.
Brand
AsRock
Only logged in customers who have purchased this product may leave a review.
Related products
Out of stock
₹6,450.00
Out of stock
₹7,679.00
45 reviews for Asrock X570 PG Velocita Motherboard
There are no reviews yet.
